nLight® Enabled DMX Control and Communication with the PWNLT SNAPSHOT Controller
(Coming Soon!)

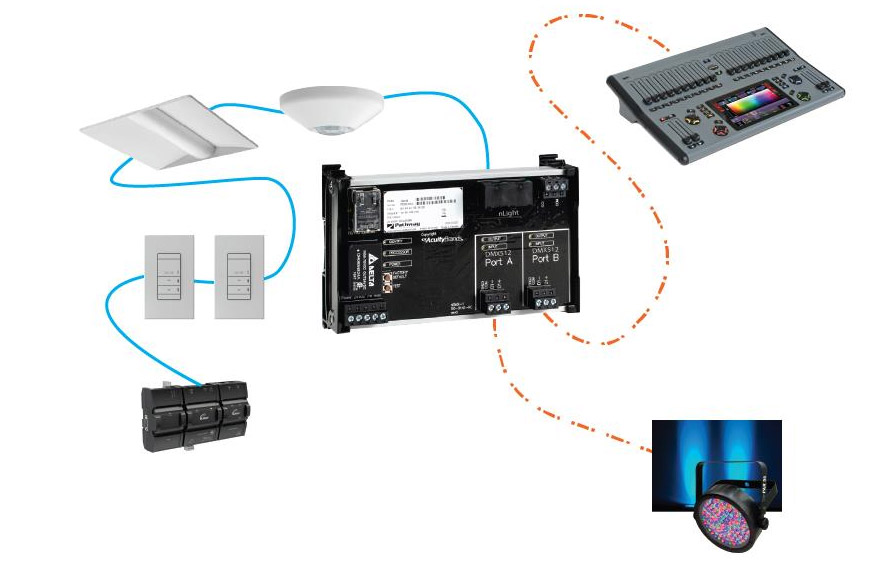

The PWNLT Snapshot Controller leverages the power of nLight networked lighting controls and Pathway controls in a simple and unified solution. It is technically the gateway linking the nLight controls platform and DMX 512 products, enabling easy, two-way communication between DMX and nLight.
A “Snapshot”, like a nLight scene, is the recording DMX512 light and intensity levels created by any theatrical console or similar controller. The PWNLT DMX Snapshot can smoothly fade between any one static snapshot to another.
PWNLT DIN P2 SNAPSHOT
- The SNAPSHOT speaks native nLight eliminating concerns of compatibility or complex integration
- Any DMX theatrical console can initiate profile scenes and broadcast levels to nLight
- Prioritization of control between nLight wall switches & sensors or DMX consoles
- Secure DMX Networking, California Title 1.81.26 compliant
- Playback up to sixteen 4-universe DMX snapshots
- Compatible with Vignette™ Architectural Wall Stations
With the addition of an nLight ECLYPSE™ Controller, a stand-alone application grows into a networked solution, providing feature sets such as time-based scheduling, building management system integration, and much more.
Multipurpose spaces in schools need lighting solutions that are creative, functional, and aid in code compliance.
Software for DMX and Networked Lighting Control
The Snapshot Controller creates a single solution for controlling DMX and nLight enabled house lighting and each offer a software solution for ease of configuration and settings.
