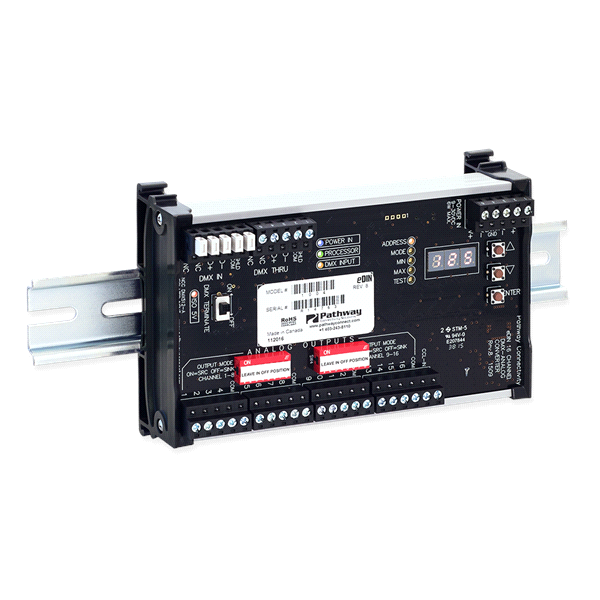

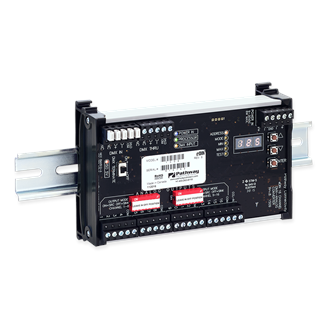

PWINF DMX to Analog Interface

DMX to Analog 0-10VDC Demultiplexer DIN-mount Interface
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Control Device Type Interface Device
Mounting Location Cabinet, Wall
Mounting Type DIN Rail, Surface
Product Type System Interface
Network Compatibility DMX, RDM
Networkable Control Yes
Qty. of Load Controlled 16
Voltage Rating 9-30VDC
# of Comm. Ports 1
Receiving Protocol DMX, RDM
Sending Protocol 0-10V, RDM
Dimming Protocol 0-10V
Compliance Listing BAA and BABA
Regulatory Listing CE
Series PWINF

Read More Read Less

Produce drawings, BOMs and more with the System Assembly Tools!

Learn More

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Pathway-Interface-PWINF-DIN-D2A.pdf DMX Interface 16 Channel Demultiplexer Spec Sheet 4/26/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Guideline Specifications

    Document Type Document Title Description Updated View
    Guideline Specification Sheets dmx512-interface-demultiplexer.docx CSI Div 26 Part 2 1/10/2022
    Guideline Specification Sheets parts-1-and-3-only.docx CSI Div 26 Parts 1 and 3 only 1/10/2022

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    CAD block-PWINF DIN D2A.dwg Blocks and Drawing (PWINF DIN D2A) DWG 7/29/2021
    CAD block-PWINF DIN D2A.pdf Blocks and Drawing (PWINF DIN D2A) PDF 7/29/2021 View
    CAD Pathway-One-Line-Block-Library.zip Pathway One-Line Block Library (DWG & PDF) 4/16/2024
    Line Drawing line-PWINF DIN D2A.dwg Dimensions and notes (PWINF DIN D2A) DWG 3/28/2022
    Line Drawing line-PWINF DIN D2A.pdf Dimensions and notes (PWINF DIN D2A) PDF 3/28/2022 View
    Technical Bulletins EC-DoC-PWINF.pdf EC Declaration of Conformity 3/26/2023 View
    User Manual PWINF DIN D2A Manual.pdf Pathway PWINF DIN DMX512 to Analog Manual 8/28/2021 View
    Wiring Diagram detail-PWINF DIN D2A.dwg Typical Wiring and notes (PWINF DIN D2A) DWG 8/9/2021
    Wiring Diagram detail-PWINF DIN D2A.pdf Typical Wiring and notes (PWINF DIN D2A) PDF 8/9/2021 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Pathway Connectivity sells products for theatrical and entertainment lighting applications through a network of qualified dealers.  For a referral to a dealer near you, please click on the Contact Us form below.

    •  Contact Us

    For commercial applications, Acuity Brands Lighting and Controls products are primarily sold through a network of agents and distributors across North America, please see the link below to locate an agent near you.

    •  Find an Agent

    Technical Support

    Pathway Connectivity is dedicated to providing outstanding technical support.  Please call us at 1.866.617.3074 or email Pathway-Support@acuitybrands.com.

    •  Technical Support

    Warranty

    Please click here to learn more about Pathway Connectivity terms & conditions and product warranty options.

Stocked

View Stocked Products

  • Stock-Sku-FeedbackIs the new stocked product detail helpful? Please tell us what you think, CLICK HERE.

    SKU data not available, please contact your local agent.

    Clear Filters

    {{getMinimumDisplayedIndex()}} - {{getMaximumDisplayedIndex()}} of {{filteredStockedProducts.length}} results

    {{icon.AltText}}
    Close Details View
    Product Details
    By Pathway
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Catalog #
    {{popupSku.details.SHORT_DESCRIPTION ? popupSku.details.SHORT_DESCRIPTION : 'N/A'}}
    Description
    {{popupSku.details.LONG_DESCRIPTION ? popupSku.details.LONG_DESCRIPTION : 'N/A'}}
    CI Code
    {{popupSku.details.CICODE ? popupSku.details.CICODE : 'N/A'}}
    Pallet Qty
    {{popupSku.details.PALLET_QUANTITY ? popupSku.details.PALLET_QUANTITY : 'N/A'}}
    Weight
    {{popupSku.details.WEIGHT ? popupSku.details.WEIGHT + ' (lbs)' : 'N/A'}}
    UPC
    {{popupSku.details.UPC ? popupSku.details.UPC : 'N/A'}}
    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    Agent Price Levels
    Name
    Price
    Commision
    {{priceResult.LABEL}} {{priceResult.NO_PRICE_MESSAGE}} ${{priceResult.UNIT_PRICE | number : 2}} {{priceResult.COMM_PCT}} %
    Distr. Price
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Price ${{popupSku.Price | number : 2}}
    {{popupSku.noQuotesMessage}}
    Read More
    Read Less
    Clear
    Name
    Distr. Price
    {{priceResult.LABEL}} ${{priceResult.UNIT_PRICE | number : 2}}
    Read More
    Read Less
    Available Inventory (Stocked)
    Qty.
    Est. Ship Date
    Location
    Qty. In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}} {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Production Lead-Time
    Production lead-time is not available at this time.
    Mfg. Time
    Total Time
    Est. Ship Date
    Location
    {{loc.MfgLeadTime}} {{loc.TotalLeadTime}} {{loc.EstShipDate}} {{loc.Location}}
    (No Products Found)
    {{result.Title}}
    {{result.Title}}
    {{result.Description}}
    {{icon.AltText}}
    Quantity
    {{(result.Quantity > 0) ? result.Quantity : 0}} in {{result.Location.substring(result.Location.indexOf("(")+1, result.Location.indexOf(")"))}}
    Total at all DCs: {{result.EnterpriseAvailability}}
    Distr. Price
    ${{result.Price | number : 2}}
    Distr. Price
    Contact Acuity
    Distr. Price
    Contact Rep
    Distr. Price
    GET PRICE
    Distr. Price
    No pricing established

    No Locations Could Be Found.


    This catalog # is not available at any location at this time. Inventory is replenished daily, please check back or contact your local sales representative or agency further details.

    exclamation-v2-YL
    Your session has expired. Click on the login link to view stocked product information.
    Login/Register
    exclamation-v2-YL
    Product information is not available at this time. Please try again later.
    Important Notice Orders entered before noon will ship same day, and orders entered after noon will ship next day within your given timezone.
    Available Est. Ship Date Location In Transit
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}} {{loc.ESTIMATED_SHIP_DATE}} {{loc.LOCATION}}     {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}{{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
    Available
    {{loc.QUANTITY > 0 ? loc.QUANTITY : 0}}
    Est. Ship Date
    {{loc.ESTIMATED_SHIP_DATE}}
    Location
    {{loc.LOCATION}}
    In Transit
    {{loc.IN_TRANSIT_QUANTITY}}
    Restocking date is unavailable at this time.
    Location Est. Restocking Qty & Date
    {{transitDetail.QUANTITY > 0 ? transitDetail.QUANTITY : 0}}
    {{transitDetail.ARRIVAL_DATE ? transitDetail.ARRIVAL_DATE : "Date Not Provided"}}
Configurator

Build Cat. # / Submittal Spec Sheet

  • Start Configurating a Product

Videos

IDC Connector video thumbnail

IDC Connector

System Assembly Tool video thumbnail

System Assembly Tool

Compatible Products

  • Controls
Close Quick View Modal
sr

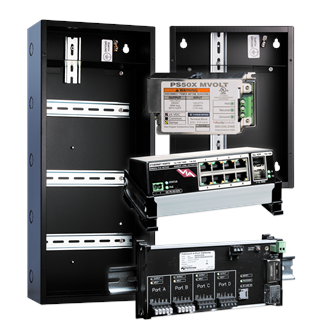

PWSA Pathway System Assemblies
