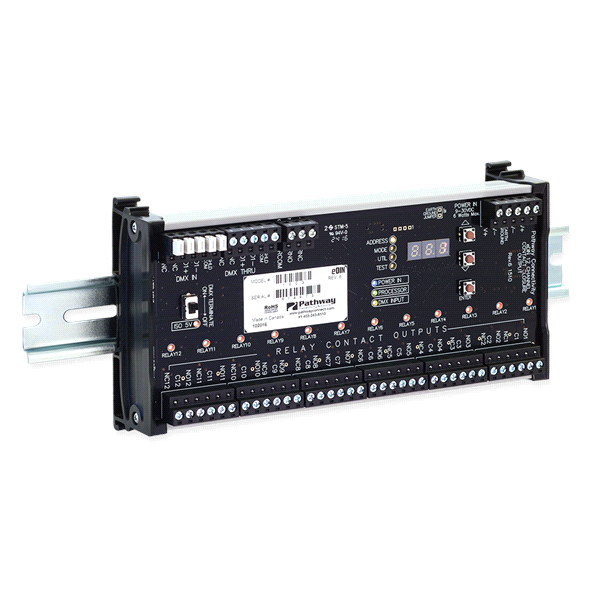

PWINF Contact Closure Interface

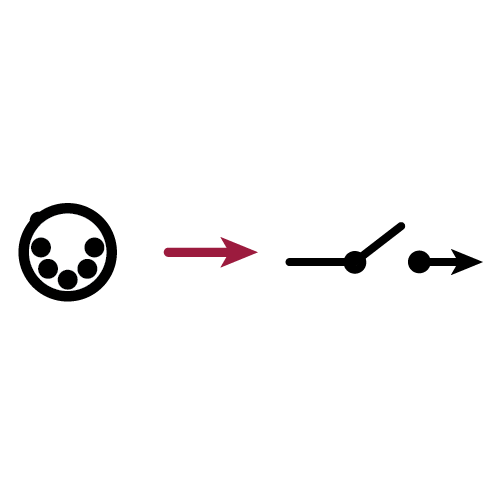

DMX Controlled Contact Closure DIN-mount Interface
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Control Device Type Interface Device
Mounting Location Cabinet, Wall
Mounting Type DIN Rail, Surface
Product Type System Interface
Network Compatibility DMX, RDM
Networkable Control Yes
Qty. of Load Controlled 12
Voltage Rating 9-30VDC
# of Comm. Ports 1
Receiving Protocol DMX, RDM
Sending Protocol DMX, Dry Contact, RDM
Compliance Listing BAA and BABA
Regulatory Listing CE
Series PWINF
