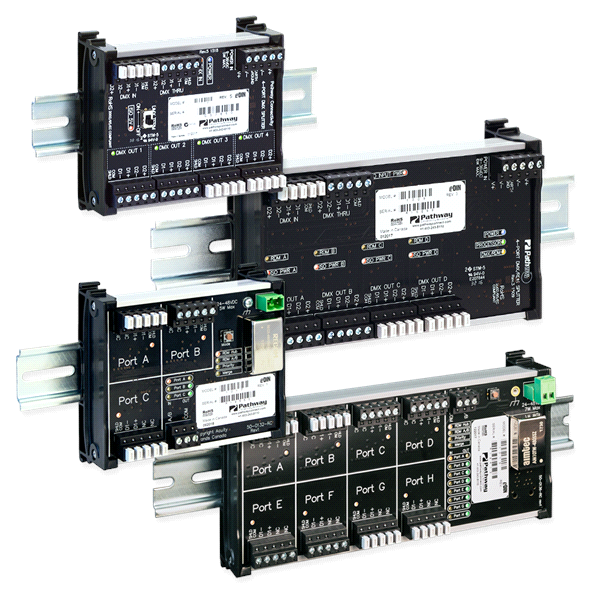

PWREP DIN Mount Opto Splitter

DMX-RDM Repeaters with Merging
    Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Control Device Type Interface Device
Mounting Location Cabinet
Mounting Type DIN Rail, Surface
Product Type Opto Splitter
Network Compatibility DMX, RDM
Networkable Control Yes
Voltage Rating 9-30VDC, 24-48VDC
# of Comm. Ports 3, 4, 8
Receiving Protocol DMX, RDM
Sending Protocol DMX, RDM
Dimming Protocol DMX, RDM
Compliance Listing BAA and BABA, ROHS
Regulatory Listing CE
Series PWREP
