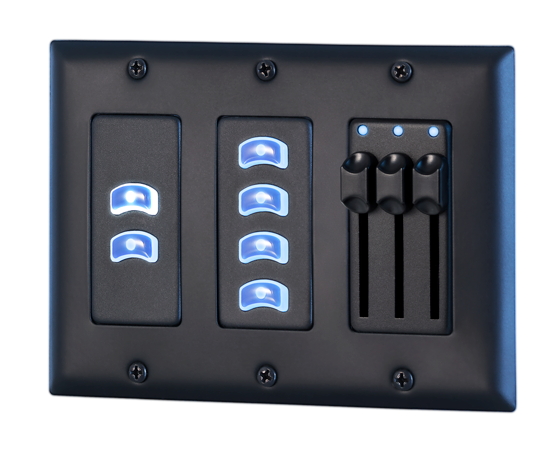

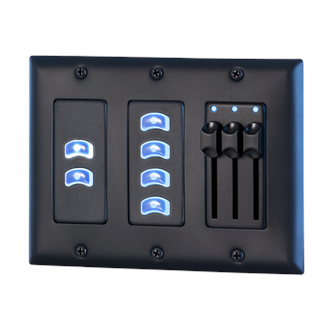

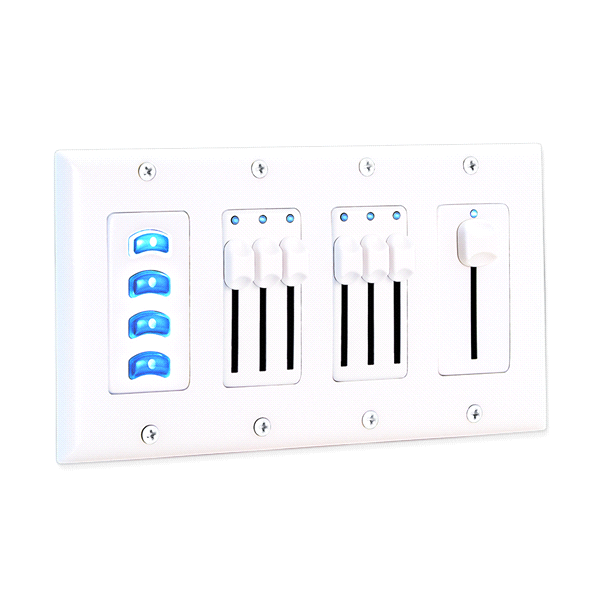

PWWSI Vignette Wall Station
- Overview
- Specifications
| Color | Black, White |
| Control Device Type | Dimming Switch, On/Off Switch, Scene Switch |
| Mounting Location | Wall |
| Mounting Type | Semi-flush |
| Product Type | Wallstation |
| Networkable Control | Yes |
| Voltage Rating | 24VDC |
| # of Comm. Ports | 1 |
| Receiving Protocol | Ethernet, sACN |
| Sending Protocol | Ethernet, sACN |
| Dimming Protocol | sACN |
| Compliance Listing | BAA and BABA, CA Title 1.81.26, ROHS |
| Regulatory Listing | CE |
| Series | PWWSI, PWWSK |
